Aerosol Fire Extinguishing
Technologies

Technology overview

An aerosol is a heterogeneous mixture of solid and/or liquid suspended particles and air. An aerosol of solid and gaseous particles is formed from the combustion of the solids contained in the generator. The aerosol behavior always depends on the particles, the carrier gas and the ambient parameters. The airborne particles are called aerosol particles and have a size of approximately 1 μm.
The property of aerosols that is of being able to be transported with gases for extended period of times, lies in the fact that with increasingly decreasing diameters they become more and more like gas molecules.

The actual extinguishing agent is potassium hydrogencarbonate. It decomposes at only about 50 °C, whereby water and carbon dioxide are split off. This produces potassium carbonate.

Physiologically, potassium carbonate is harmless; it is also included as the additive E501 in foods / aliments.
​
The aerosol generators differ from similar products in that special solid compositions are used for their production whereby a smaller amount of solid airborne matter is produced in the fire extinguishing aerosols.
​
The second special feature of fire extinguishing aerosols is their low toxicity. These characteristics make it possible to minimize the negative effects on persons and objects during fire fighting operations.

Inhalation of the extinguishing aerosol does not lead to poisoning (inhalation poisoning)

The change in the atmosphere through the aerosol does not lead to a loss of consciousness or suffocation

The extinguishing aerosol allows for a prolonged evacuation time of people

The aerosol fire extinguishing generators can be used to fight fires in enclosed areas in accordance with fire classifications А, B, C and F. The fire extinguishing generators are suitable for use up to 35KVA (electrical installations)

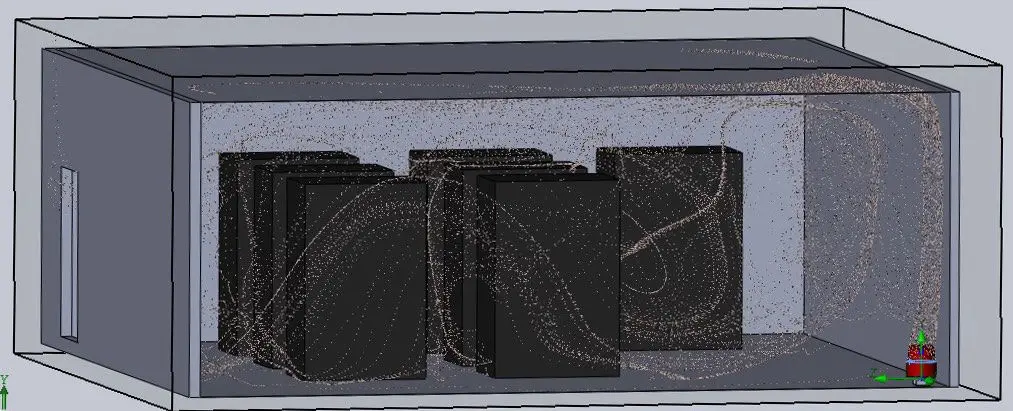

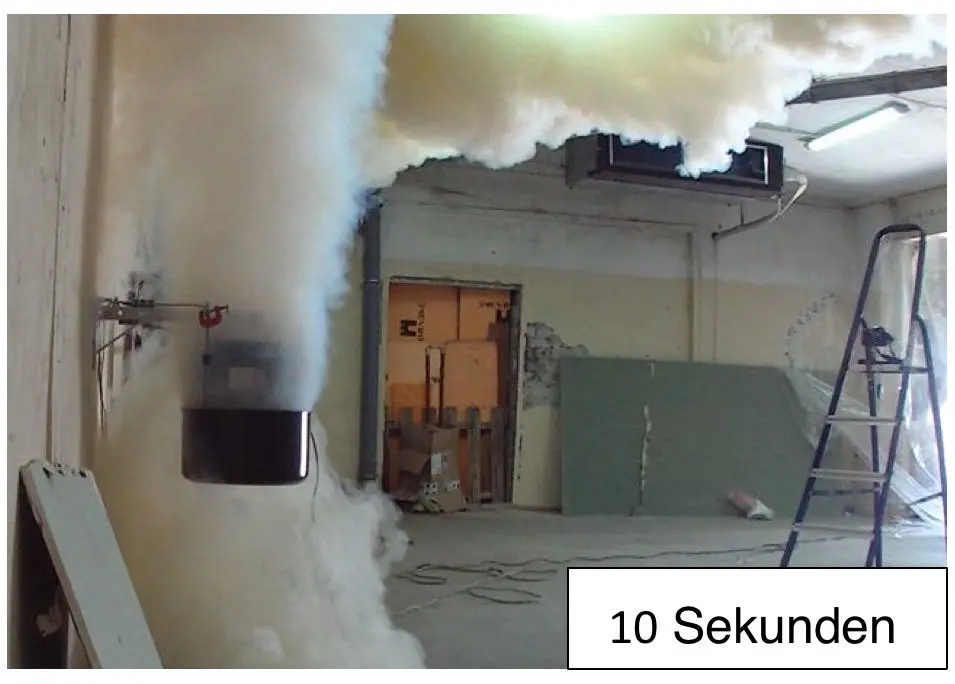

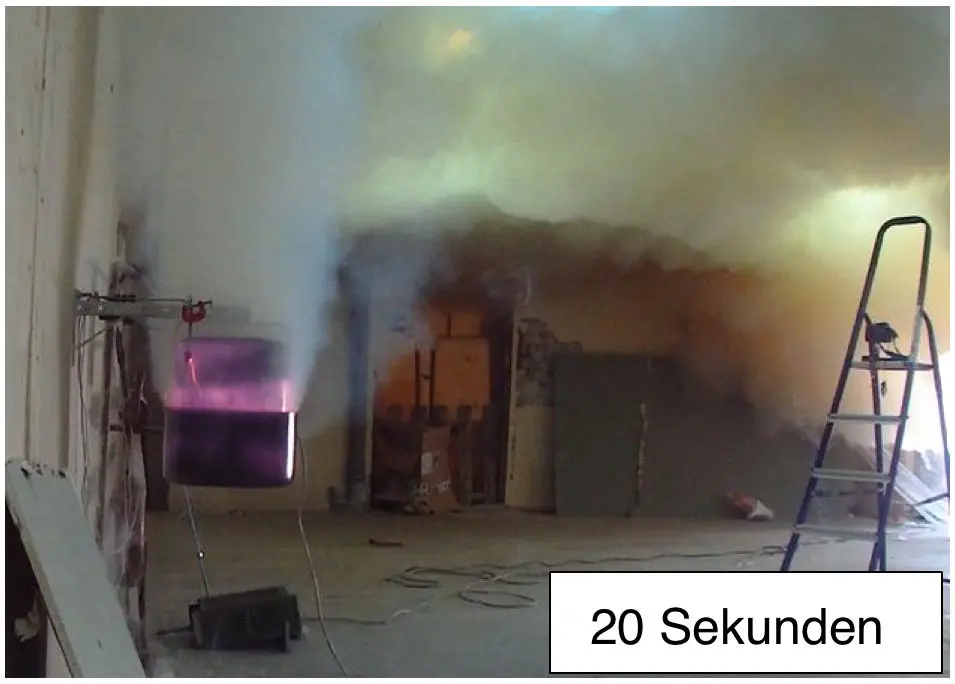

Aerosol dispersion

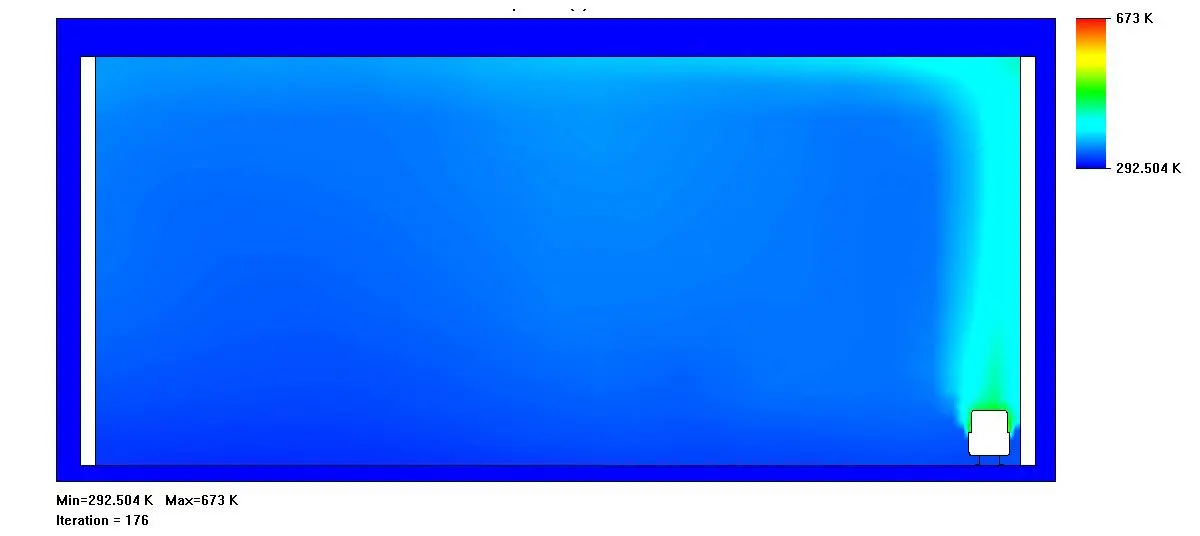

Aerosol temperature
Applications
Aerosol extinguishing systems are ideally suited for protecting




Switchboards, switchgear, cable ducts, transformers, distributors

Server rooms and data processing systems, telephone, mobile and transmission stations

Machinery spaces on ships and watercraft

Archives, libraries and art magazines

Storage facilities including storage facilities for industrial oils, food and building materials

Garages and car parks

Various production plants of heavy, light, chemical, food and pharmaceutical industries

The Pion extinguishing systems are suitable for the protection of




Engines spaces (vehicles, buses, trucks, fork lift trucks, ships, etc.), as well as any smaller objects located in poorly accessible zones.

CLEAR ADVANTAGES

1

Easy and Practical

Easy installation
Easy maintenance
​Space-saving
2

Non-toxic

Extinguishing agent in a solid
Use of minerals, no organic chemicals
3

Economical

No damages from the extinguishing agent
​Very low cost in case of false alarm
4

Safety

High operating safety
No ozone-damaging effect
5

Easy integration

Can be integrated into existing monitoring networks
Easy to integrate into existing rooms
